The rear axle brake discs didn't clean up as nicely as I had hoped. I thought it was just surface rust but the edges were badly corroded. A set of new discs isn't expensive so I've decided to change them. This would also give me the chance to clean up and paint the inside of the splash screens. Little did I know it was going to be a hell of a job.
I should've seen it coming though, both the Practical Classics 1980s book and the current Mk II restoration issues state what a tedious job removing the hubs can be.
First up: the castellated nut. I soon found out the best way to remove this is to put the road wheel back on, sit on the wheel while it rests on the floor, and then leaning on the wrench with all your might. (Of course, first remove the split pin!)
The first hub came off with a relatively small 3-legged bearing puller and some extensions on the wrench. This same bearing puller unfortunately broke (well, exploded) when I was trying to get the second hub off.
The pictures below show the somewhat sturdier piece I borrowed from the local garage. Apparently, it's about the same age as the car.
It still took 2 people (one to turn the puller, one to hold the axle down with all his weight) but finally the second hub came off as well. A lot of sweat, some bruises (from the broken bearing puller), and a whole lot of swearing were involved.
Top tip 1: if you want to reuse the brake discs, don't hit them with a hammer. I wasn't planning on reusing them so I didn't care. By the way: it didn't help any.
Top tip 2: Some people at the Dutch jaguarforum told me to apply heat to the hubs if they didn't come off.
I have decided to use the original pressed steel wheels. Partly because that's the way it was on Morse's jag, partly because I know I will never clean wire wheels, and partly because wire wheels would add another €1000-€1500 to the parts bill.
The road wheel came in useful again to release the bolts from the brake disc.
The reversal of the removal procedure...
You might notice the brakes aren't connected - that's because they need to be aligned first, and I need to check if the wheels are on straight as well. But that's for another round of getting dirty.
vrijdag 10 december 2010
zondag 21 november 2010
Rear axle and brakes practically ready
I found the solution to the problem with the position of the bleed nipple on the brakes. Apparently the position was changed to the inside on later models.
I've had some trouble removing one of the pistons. The others popped out just with some pressured air, but for the last one I've had to fill the cylinder block with brake fluid and then apply pressured air, a couple of times.
I've finished brushing the rust off the rear axle and respraying. I didn't remove the splash screens near the brakes as this involves a lot of work. All that's left now is adjusting the brakes and greasing the bearings.
New brake pipes, a bit of paint, new oil for the dif, and a lot of rust removed.
As it was...
I'm not sure about the brake discs, I've cleaned them but they're not really shining like mirrors yet...
I've had some trouble removing one of the pistons. The others popped out just with some pressured air, but for the last one I've had to fill the cylinder block with brake fluid and then apply pressured air, a couple of times.
I've finished brushing the rust off the rear axle and respraying. I didn't remove the splash screens near the brakes as this involves a lot of work. All that's left now is adjusting the brakes and greasing the bearings.
New brake pipes, a bit of paint, new oil for the dif, and a lot of rust removed.
As it was...
I'm not sure about the brake discs, I've cleaned them but they're not really shining like mirrors yet...
zondag 14 november 2010
Some more on the brakes
One of the brakes. What strikes me as odd is the place of the bleed nipple. This is in a different (and more logical) position on the parts car.
Also note that the later type of bleed nipple doesn't use a ball. It just has a small hole on the side that allows you to bleed the system when released.
Looking at the parts list drawings it seems that somebody, indeed changed the place of the cylinders. The bleed nipple should of course be on the wheel side of the car. In the service manual it says the "hairpin bend" in the tubing shoud be on the inside. That's the case here but it's not in the correct hole, the brake piping from the axle can't be connected this way. So did somebody mess up?
Also note that the later type of bleed nipple doesn't use a ball. It just has a small hole on the side that allows you to bleed the system when released.
Looking at the parts list drawings it seems that somebody, indeed changed the place of the cylinders. The bleed nipple should of course be on the wheel side of the car. In the service manual it says the "hairpin bend" in the tubing shoud be on the inside. That's the case here but it's not in the correct hole, the brake piping from the axle can't be connected this way. So did somebody mess up?
The brakes
Time to tackle the brakes. It sounds simple: new brake pads and new sealings. The truth was somewhat slower and dirtier.
The brake pads were stuck and broke loose from their holders. Everything is so dirty it needs a very thorough cleaning.
The work ahead...
As you can see on the left, the rubbers are worn. Some dirt inevitably found its way into the calipers but I've decided to try and reuse them anyway.
To remove the pistons from the cylinder block, it's recommended to use pressurized brake fluid, but since there was no more brake fluid in the braking system, I tried pressured air. Some of the pistons needed pusing back and forth a couple of times. I ripped the top rubber part away to get it out of the way.
With a good bearing puller, a fitting socket and a thick washer I separated the parts of the piston. It's the only way to fit the rubber seal.
Soon, I'll be posting overview pictures of the rear brakes.
The brake pads were stuck and broke loose from their holders. Everything is so dirty it needs a very thorough cleaning.
The work ahead...
As you can see on the left, the rubbers are worn. Some dirt inevitably found its way into the calipers but I've decided to try and reuse them anyway.
To remove the pistons from the cylinder block, it's recommended to use pressurized brake fluid, but since there was no more brake fluid in the braking system, I tried pressured air. Some of the pistons needed pusing back and forth a couple of times. I ripped the top rubber part away to get it out of the way.
With a good bearing puller, a fitting socket and a thick washer I separated the parts of the piston. It's the only way to fit the rubber seal.
Soon, I'll be posting overview pictures of the rear brakes.
Front axle removed and some more...
I've removed the front axle. To my surprise, it went relatively easy. Two big jacks and one smaller jack were required. The front axle is really only held on by four screws, plus the anti-roll bar linkages plus the steering house. The steering was the most difficult part to get loose.
Meanwhile, I've removed the rust from the rear axle and painted it. Pictures are to follow. Also, the leaf springs were painted and the new bushes were pushed in. I learned that the original "metalastic" bushes have a metal ring on the outside, that needs to be pushed out as well. The new "polybush" bushes don't have this metal ring.
The bolt that holds the springs together and the rubber pads between the leafs aren't available separately. Fortunately, Angloparts sells a bolt that fits if you use a couple of washers.
The panhard rod was rusty and it wouldn't move anymore so I bought a new one. I kept the washers.
The bushes were in the Polybush kit. As you can see from the picture, it was about time they were renewed.
Meanwhile, I've removed the rust from the rear axle and painted it. Pictures are to follow. Also, the leaf springs were painted and the new bushes were pushed in. I learned that the original "metalastic" bushes have a metal ring on the outside, that needs to be pushed out as well. The new "polybush" bushes don't have this metal ring.
The bolt that holds the springs together and the rubber pads between the leafs aren't available separately. Fortunately, Angloparts sells a bolt that fits if you use a couple of washers.
The panhard rod was rusty and it wouldn't move anymore so I bought a new one. I kept the washers.
The bushes were in the Polybush kit. As you can see from the picture, it was about time they were renewed.
Engine progress
Finally some time to update this blog. The engine is working - the reason it didn't start was that the distributor cap wasn't put on correctly.
Two other problems came up. The first was the joint where the fuel line joins the carb. This is different from the 2.4 mk II with the HD carbs. I couldn't find it in any parts manual.
I cut a new one from a piece of universal fuel hose that was an exact fit.
Then I found out one of the carbs was leaking through the overflow outlet. Turns out I put the little "valve" in backwards. This took two minutes to correct.
The leaky radiator was - quite to my surprise - fixed quite quickly with CRC radiator sealer (see this link). It's been leak-free for a couple of months right now, but of course there hasn't been any pressure or movement.
Two other problems came up. The first was the joint where the fuel line joins the carb. This is different from the 2.4 mk II with the HD carbs. I couldn't find it in any parts manual.
I cut a new one from a piece of universal fuel hose that was an exact fit.
Then I found out one of the carbs was leaking through the overflow outlet. Turns out I put the little "valve" in backwards. This took two minutes to correct.
The leaky radiator was - quite to my surprise - fixed quite quickly with CRC radiator sealer (see this link). It's been leak-free for a couple of months right now, but of course there hasn't been any pressure or movement.
zondag 8 augustus 2010
Welcome, older brother
Although the guy that sold me the 240 promised it was "98% complete", a lot of pieces were missing. Door handles, lights, and various bits and pieces. I came across this wreck on the internet, and it still has everything mine is missing. It came pretty cheap because it's in a pretty dreadful state.
I'm still in doubt whether to put the left hand drive steering wheel and all the rest into the project car. Apparently it can be done, and since the engine bay is as good as empty, it should be possible. But that's for (much much) later.
In the boot there was about half an engine's worth of stuff including the chrome cam shaft covers, a starter motor, generator, water pump (stuck) etc... plus a clutch that's almost as good as new... just what I need. I only hope the larger clutch will fit.
The interior...
I'm still in doubt whether to put the left hand drive steering wheel and all the rest into the project car. Apparently it can be done, and since the engine bay is as good as empty, it should be possible. But that's for (much much) later.
In the boot there was about half an engine's worth of stuff including the chrome cam shaft covers, a starter motor, generator, water pump (stuck) etc... plus a clutch that's almost as good as new... just what I need. I only hope the larger clutch will fit.
The interior...
Some more progress on the engine
In order to test the engine I had to put the clutch housing on, because that's where the starter motor goes. I repaired the fuel pump as well - it just had some dirty contacts. The radiator is leaky, I'll try to get it repaired.
At first the starter motor didn't run but that was because of the thin starter cables I used. When using 10mm² cables it turns the engine but there's no sign of starting yet. Because of the holidays I haven't had much time to look into it further.
At first the starter motor didn't run but that was because of the thin starter cables I used. When using 10mm² cables it turns the engine but there's no sign of starting yet. Because of the holidays I haven't had much time to look into it further.
vrijdag 18 juni 2010
the engine is growing...
zondag 13 juni 2010
Some progress on the engine...

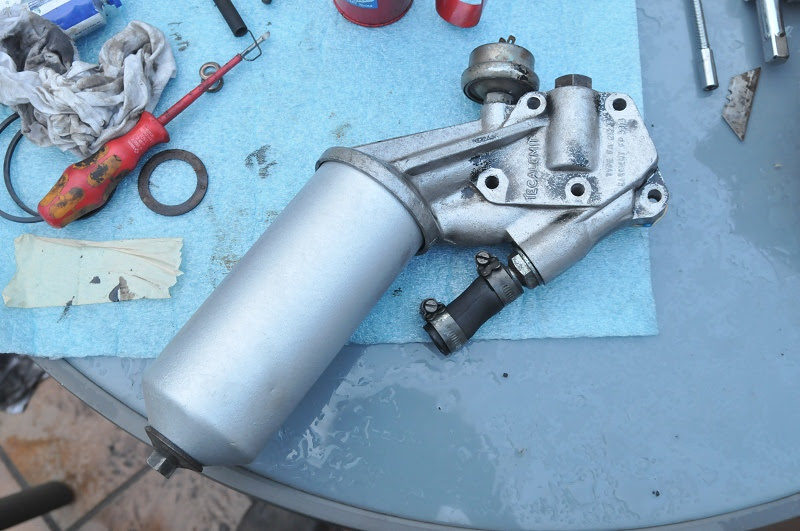

The disassembled and re-assembled oil filter.
I was lucky I never throw out the old pieces until the new ones prove satisfactory: one of the oil filter parts was stuck to the old filter element and I would've thrown it away.
Setting the valve clearances is a boring job: mounting one camshaft, measuring everything, getting the shaft out, correcting, and starting over... So you'd better do this when you're in a totally zen mood. As illustrated below.
Two tools that come in very handy when setting valve clearances:
1) a micrometer to measure the exact thickness of the used shims. This one cost about 6,5€ which is the price of two shims if you shop at SNGBarratt, or one shim if you go to your local Jaguar dealership.
2) a distance piece from a drill. This can be used to turn the camshaft, almost without effort.
The damper, cleaned, reveals the "BTDC" markings.
Just some more nuts & bolts. We order Chinese food in order to get these handy boxes.
Water pump and cylinder head in place.
Isn't this a nice sight... I don't think the engines had gold lettering originally but I like it this way.
I was lucky I never throw out the old pieces until the new ones prove satisfactory: one of the oil filter parts was stuck to the old filter element and I would've thrown it away.
Setting the valve clearances is a boring job: mounting one camshaft, measuring everything, getting the shaft out, correcting, and starting over... So you'd better do this when you're in a totally zen mood. As illustrated below.
Two tools that come in very handy when setting valve clearances:
1) a micrometer to measure the exact thickness of the used shims. This one cost about 6,5€ which is the price of two shims if you shop at SNGBarratt, or one shim if you go to your local Jaguar dealership.
2) a distance piece from a drill. This can be used to turn the camshaft, almost without effort.
The damper, cleaned, reveals the "BTDC" markings.
Just some more nuts & bolts. We order Chinese food in order to get these handy boxes.
Water pump and cylinder head in place.
Isn't this a nice sight... I don't think the engines had gold lettering originally but I like it this way.
